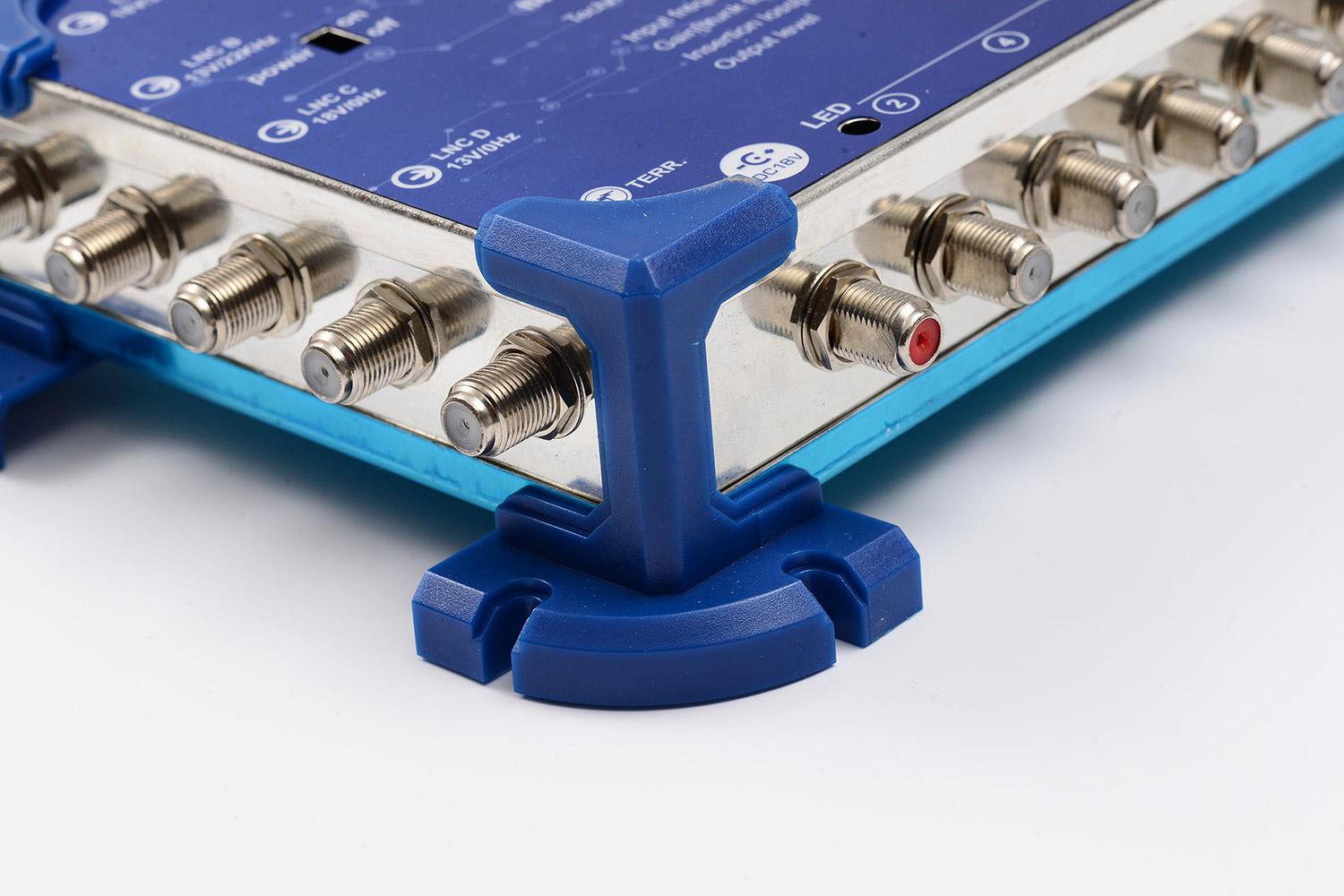

4 satellite IF 1 terrestrial TV inputs to 8 outputs for satellite receivers
Allow use of 1 Quatro or up to 2 Dual or Twin LNBs.
Single coaxial cable conveys both satellite and terrestrial signal.
External Switching Power Supply can set up the operational power of LNB.
Very low tap loss
Circuit design for signal amplifier function.
| ITEM | TYP | REMARK | |||||
| Frequency response | 5-2150MHz | ||||||
| Inputs | 4SAT+1 Terr | F connectors | |||||
| Subscribers | 8 TAP | F connectors | |||||
| Tap Loss | Terr 47-862MHz | 2 dB | |||||
| Sat 950-2150MHz | 0 dB | ||||||
| Return Loss | Terr in 47-862MHz | 10 dB | |||||
| Sat in 950-2150MHz | 10 dB | ||||||
| Terr out 47-862MHz ( Tap ) | 8 dB | ||||||
| Sat out 950-2150MHz ( Tap ) | 8 dB | ||||||
| Isolation | OUT-OUT | Terr 47-862MHz | 25dB | ||||
| Sat 950-2150MHz | 30dB | ||||||
| H/V | Sat 950-2150MHz | 30dB | |||||
| Rejection | 26dB | ||||||
| Flatness | ±2 dB | ||||||
| Output level Sat. ( IMD3-35dB) | 95 dBuV | ||||||
| Output level Terr. ( IMD3-35dB) | 85 dBuV | ||||||
| Switching voltage | V:9.5~14.5V H:15.5~21V | ||||||
| Switching commands | 13V,18V,13V/22KHz,18V/22KHz | ||||||
| Size | |||||||

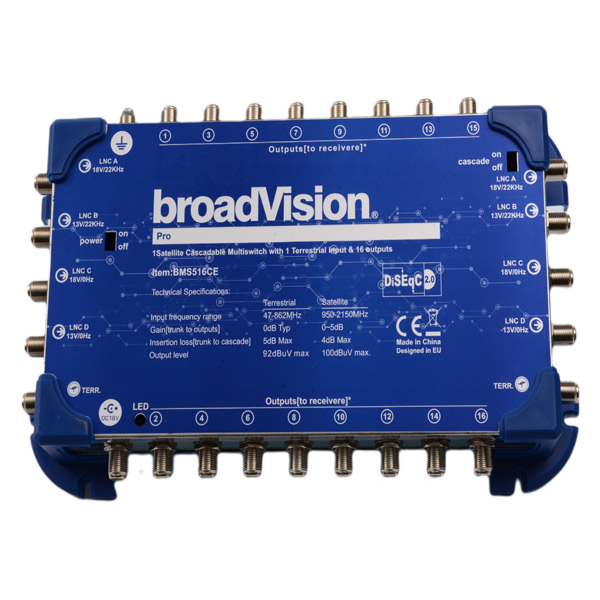

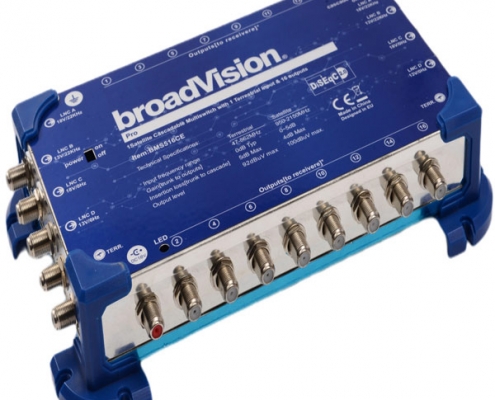

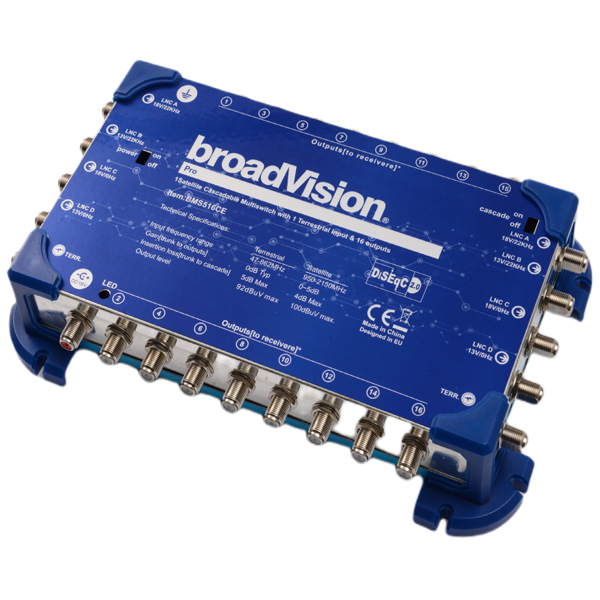

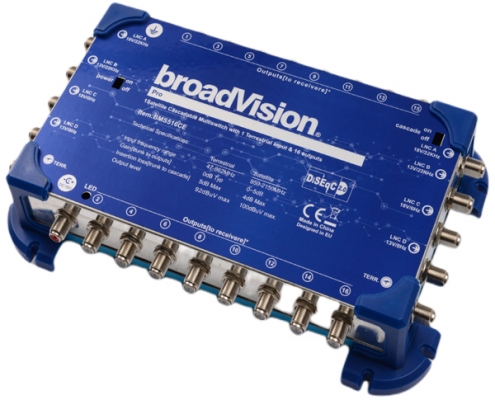

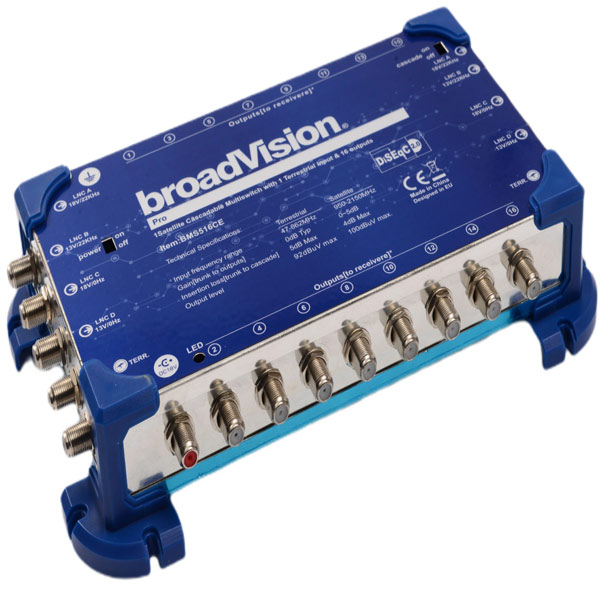

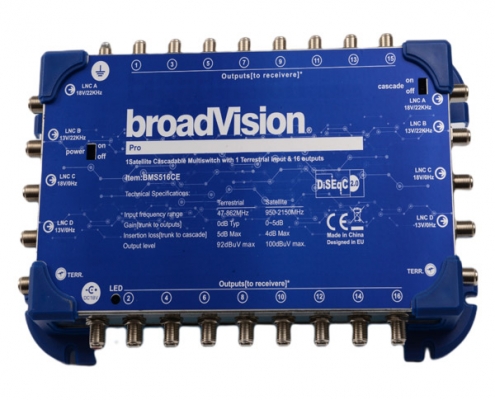

BMS516CE Multiswitch
